FH75 series automotive flexible printed circuit/flat flexible connector supports MIPI D-PHY specifications.

Delivers high-speed data transmission up to 1.5Gbps. Has 0.5mm pitch and height of 2mm. Offers high contact reliability in severe environments and uses two-point contact design with two independent springs that provide wiping action to prevent contact failure from dust, dirt and other contaminants. Operating temp. is up to 125°C. Meets automotive requirements including resistance to shock and vibration, hydrogen and sulfur gasses, humidity and corrosion. Uses flip lock with FPC tab and housing side catches that offer retention force of 51.4N. Used in car navigation, laser radar, millimeter-wave radar, drive recorder, audio display and in-vehicle camera systems.  Available in 40-position version that is halogen-free and RoHS-compliant.

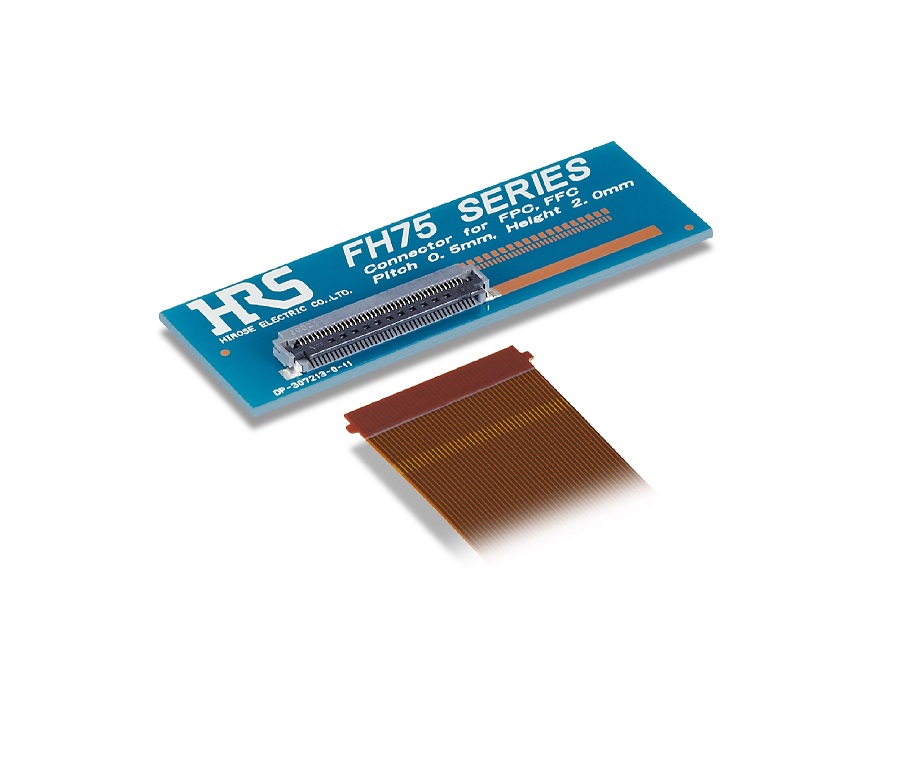

Hirose FH75 Series image
