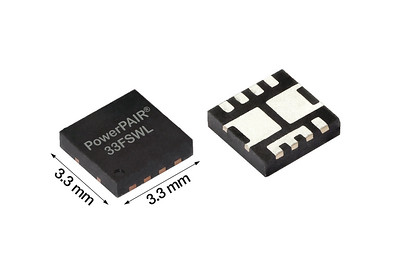

Vishay's SiZF4800LDT 80V symmetric dual n-channel power MOSFET combines high and low side TrenchFET Gen IV MOSFETs in a single 3.3mm by 3.3mm PowerPAIR 3x3FS package.

Can be used in place of two discrete devices typically specified in the PowerPAK 1212 package, saving 50% board space, and provides designers with a space-saving solution for synchronous buck converters, point of load (POL) converters, and half- and full-bridge power stages for DC/DC converters in radio base stations, industrial motor drives, welding equipment and power tools. Offers on-resistance down to 18.5 mΩ typical at 4.5V and 54% lower thermal resistance compared to competing MOSFETs. Features a continuous drain current of 36A, which is 38% higher than the closest competing device, as well as a unique pin configuration that enables a simplified PCB layout and supports shortened switching loops to minimize parasitic inductance. Is 100% Rg- and UIS-tested, RoHS-compliant and halogen-free.

Vishay Intertechnology

vishay.com
