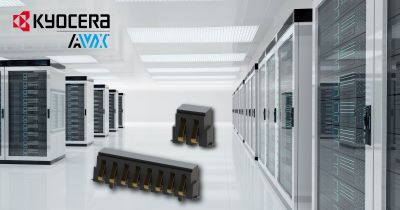

Kyocera AVX's 9155-800 series of vertical-mate, 2.0mm-pitch battery connector series now includes seven- and eight-position models.

Features a unique contact geometry that deflects cleanly when a module, mating connector or PCB is vertically pushed into position, enabling full vertical engagement in pluggable modules without the risk of contact damage. Also features a forgiving sweeping beam contact design and an anti-snag feature that protects the contacts from damage during deflection, and when static as well. Includes gold-plated beryllium copper (BeCu) contacts that are said to deliver excellent electrical and mechanical performance for more than 5,000 mating cycles and plastic locating bosses and SMT anchor tabs that maximize the mechanical stability of the connector in high-shock and vibration environments. Is compatible with both signal and power circuits, and also feature flame-retardant (UL94 V-0) black, glass-filled Nylon 46 insulators, BeCu contacts with either 0.4µm or 0.8µm of selective gold-over-nickel plating and pure tin tails. Rated for 125VAC or the DC equivalent; 1.5A or 2A, depending on the number of positions (five to eight and two to four, respectively); and operating temperatures extending from -40°C to +125°C.

Kyocera AVX

kyocera-avx.com

KAVX-9155
