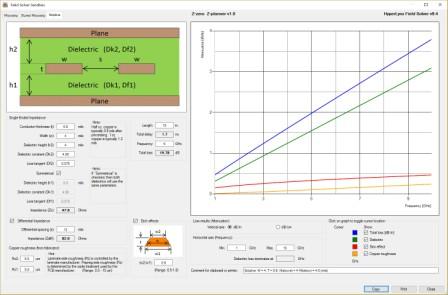

Field Solver Sandbox provides provides quick, accurate impedance and insertion–loss results.

Makes what-if tradeoffs between Dk, Df, physical trace topologies, and spacing — with results that include single-ended impedance, differential impedance, propagation delay, loss as a function of frequency, and effects of copper roughness. Comes as single user, node locked or floating network license. Widearea network (WAN) licenses also available.

Z-zero

z-zero.com
